MI Heavy Duty Nozzle Heaters
MI Heavy Duty Nozzle Heaters

Standard Specifications:

  • MgO insulation (Compressed)
    Rigid Structure
    0,335” (8,5mm) thickness
    TIG welded all around (Totally sealed for all kind of leakages)
    Optional protection up to IP68 (Waterproof)
    Optional bore hole(s) for external thermocouple
    Up to 1300°F temperature
    AISI 304 / 316 Stainless steel sheath
    Various termination types available
    Two-piece construction (hinged) available
    Standard voltage 230V (Up to 480Volts)
    High Voltage Resistance(Hi-Pot) >1500V
    Wattage tolerances +/- 10%

Standard dimension limitations:
  • Minimum diameter is 1,2" (30mm)
  • Minimum width is 1,2" (30mm)
  • Maximum diameter is 3,15" (80mm)
  • Maximum width is 2,36" (60mm)
For smaller or larger sizes, please contact us.


Optional Built-in thermocouples
(recommended);
  • Type "J"
  • Type "K"
  • Type "PT-100"


(Notice: Initially, due to the executable file format, your anti-virus software may recognize the "exe" file as a "suspicious file", after its first scan you'll be free to use.)


MI mini band heaters

Standard Specifications
(thin version for limited spaces):
  • MgO insulation (Compressed)
  • Rigid Structure
  • 0.157” (4mm) thickness
  • TIG welded all around (Totally sealed for all kind of leakages)
  • Up to 1300°F temperature
  • AISI 304 / 316 Stainless steel sheath
  • Various termination types available
  • Two-piece construction (hinged) available
  • Standard voltage 230V (Up to 480Volts)
  • Wattage tolerances +/- 10%
  • High Voltage Resistance(Hi-pot) >1000V

Standard dimension limitations:
  • Minimum diameter is 0,787" (20mm)
  • Minimum width is 0,866" (22mm)
  • Maximum diameter is 2,36" (60mm)
  • Maximum width is 2,36" (60mm)
For smaller or larger sizes, please contact us.


With Built-in thermocouples
(strongly recommended);

  • Type "J"
  • Type "K"

45°standard CAD files
(Notice: Initially, due to the executable file format, your anti-virus software may recognize the "exe" file as a "suspicious file", after its first scan you'll be free to use.)

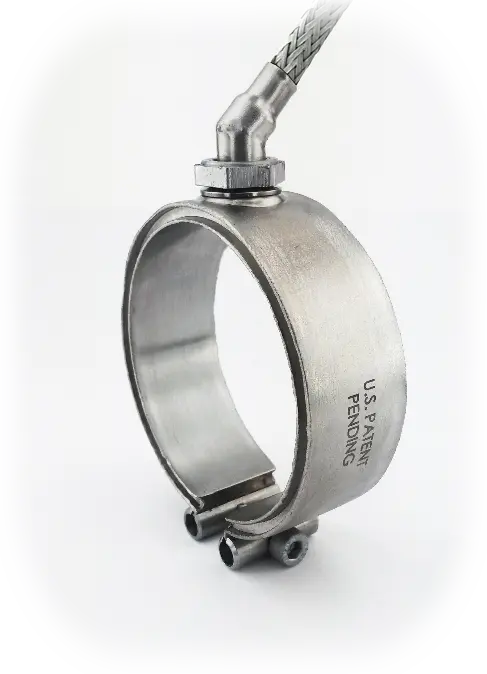

ISIN MI Nozzle Heater, U.S. Patent
If you need large sizes, we suggest you Cast-in Heaters.
